Parts for G0503 - 12" 20 HP Horizontal Resaw Bandsaw

Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503
Part Diagram for G0503

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
35
P0503035
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
1000
*DISCD*TOOL BOX
Item is no longer available
Price
N/A
101
ELECTRIC BOX
Price
$1,691.45
102
CAP SCREW M8-1.25 X 16
Price
N/A
103
LOCK WASHER 8MM
Price
N/A
104
SET SCREW M8-1.25 X 10
Price
N/A
105
GEAR WHEEL 25T X M2.5
Price
$57.10
106
GEAR WHEEL 25T X M2.5
Price
$57.10
107
PILLOW BLOCK BEARING UCP205
Price
N/A
108
CAP SCREW M12-1.75 X 25
Price
N/A
109
LOCK WASHER 12MM
Price
N/A
110
FLAT WASHER 12MM
Price
N/A
111
CONNECT ROD
Price
$7.90
112
HANDWHEEL
Price
$135.25
113
HANDLE M12-1.75 X 20
Price
$40.80
114
FLAT WASHER 12MM
Price
N/A
115
HEX NUT M10-1.5
Price
N/A
116
FRAME
Price
$919.25
116-1
BLADE ELEVATION GAUGE
Price
$6.40
117
HEX BOLT M10-1.5 X 30
Price
N/A
118
LOCK WASHER 10MM
Price
N/A
119
FLAT WASHER 12MM PLASTIC
Price
$1.60
120
CAP SCREW M10-1.5 X 25
Price
N/A
121
CONTROL PANEL BRACKET
Price
$124.40
122
CAP SCREW M8-1.25 X 25
Price
N/A
123
CONTROL PANEL SUPPORT
Price
$206.25
124
CONTROL PANEL
Price
$40.80
125
CONTROL BOX
Price
$325.80
125-1
COVER & CABLES
Price
$193.20
126
SLIP SLEEVE SET ROD
Price
$20.55
127
CLAMP
Price
$1.60
128
DUST GUARD BELLOW PL040340
Price
$36.25
129
CAP SCREW M12-1.75 X 40
Price
N/A
130
PLATE
Price
$94.85
131
SCREW BASE
Price
$126.80
132
WORM GEAR
Price
$989.30
133
ADJUSTING NUT M25 X 5
Price
$66.75
134
FIXED SCREW BASE
Price
$21.75
135
KEY 5 X 5 X 45
Price
N/A
136
SHAFT COUPLING
Price
$112.95
137
CONNECTOR ROD
Price
$101.75
138
HEX BOLT M8-1.25 X 20
Price
N/A
139
FLAT WASHER 8MM
Price
N/A
140
BRACKET
Price
$124.40
141
PLATE
Price
$120.20
142
PILLOW BLOCK BEARING UCP205
Price
N/A
143
FLAT WASHER 12MM
Price
N/A
144
HEX NUT M10-1.5
Price
N/A
145
CONNECT ROD
Price
N/A
146
GEAR WHEEL 25T X M2.5
Price
N/A
147
SLIP SLEEVE SET ROD
Price
N/A
148
DUST GUARD BELLOW PL040340
Price
N/A
149
CAP SCREW M12-1.75 X 40
Price
N/A
150
LOCK WASHER 12MM
Price
N/A
151
PLATE
Price
N/A
152
CONTROL PANEL BRACKET
Price
N/A
153
PLATE
Price
N/A
154
CAP SCREW M8-1.25 X 25
Price
N/A
155
CONTROL PANEL BRACKET
Price
N/A
156
FLAT WASHER 12MM
Price
N/A
157
LOCK WASHER 10MM
Price
N/A
158
HEX BOLT M10-1.5 X 30
Price
N/A
159
SHAFT COUPLING
Price
N/A
160
CONNECTOR ROD
Price
N/A
161
SHAFT COUPLING
Price
N/A
162
WORM GEAR
Price
N/A
163
WORM GEAR
Price
N/A
164
HEX NUT M6-1
Price
N/A
165
FLAT WASHER 6MM
Price
N/A
166
CONNECTOR ROD
Price
N/A
167
KEY 5 X 5 X 45
Price
N/A
168
FLAT WASHER 8MM
Price
N/A
169
CAP SCREW M12-1.75 X 40
Price
N/A

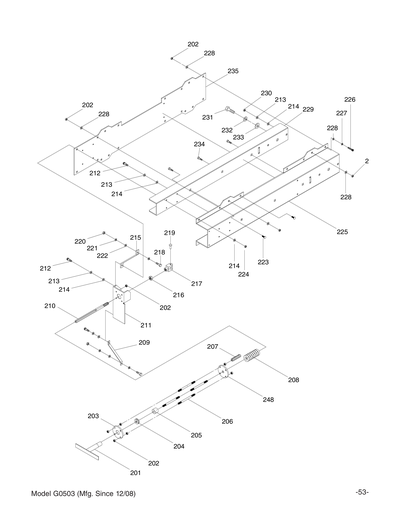

201
TENSION HANDLE M10-1.5
Price
$101.45
202
HEX NUT M10-1.5
Price
N/A
203
PLATE
Price
$36.25
204
THRUST BEARING 51204
Price
N/A
205
LOCK COLLAR
Price
$18.15
206
STUD-FT M10-1.5 X 200
Price
$21.75
207
PLASTIC SLEEVE SPACER 3/8" X 2-3/4"
Price
$21.50
208
COMPRESSION SPR TB-60-090
Price
$238.85
209
FRAME SUPPORT SHAFT A
Price
$40.80
210
SAW BLADE TENSION ROD
Price
$47.10
211
PRESSURE BAR BRACKET
Price
$81.25
212
CAP SCREW M12-1.75 X 30
Price
N/A
213
LOCK WASHER 12MM
Price
N/A
214
FLAT WASHER 12MM
Price
N/A
215
FRAME SUPPORT SHAFT B
Price
$40.80
216
HEX NUT M18-1.5
Price
N/A
217
ROD END CLEVIS ASSEMBLY
Price
N/A
217A
ROD END CLEVIS ASSEMBLY
Price
$72.45
218
HEX BOLT M8-1.25 X 25
Price
N/A
219
ROD END CLEVIS ASSEMBLY
Price
N/A
220
HEX NUT M8-1.25
Price
N/A
221
LOCK WASHER 8MM
Price
N/A
222
FLAT WASHER 8MM
Price
N/A
223
CARRIAGE BOLT M10-1.5 X 30
Price
N/A
224
HEX NUT M12-1.75
Price
N/A
225
BEAM
Price
$354.15
226
CAP SCREW M10-1.5 X 30
Price
N/A
227
LOCK WASHER 10MM
Price
N/A
228
FLAT WASHER 10MM
Price
N/A
229
BEAM SUPPORT BAR
Price
$146.75
230
HEX NUT M12-1.75
Price
N/A
231
P0503231
Now: PB63
HEX BOLT 3/4-10 X 3
Price
N/A
232
LOCK WASHER 3/4
Price
N/A
233
P0503233
Now: PW13
FLAT WASHER 3/4
Price
N/A
234
CARRIAGE BOLT M12-1.75 X 40
Price
N/A
235
BEAM PLATE
Price
$169.40
236
HINGE UPPER
Price
N/A
237
HEX BOLT M6-1 X 20
Price
N/A
238
DOOR LOWER GUARD
Price
N/A
239
HINGE LOWER
Price
N/A
240
FLAT WASHER 6MM
Price
N/A
241
HEX NUT M6-1
Price
N/A
242
DOOR LEFT
Price
N/A
243
HINGE LOWER
Price
N/A
244
FLAT WASHER 6MM
Price
N/A
245
HEX NUT M6-1
Price
N/A
246
FLAT WASHER 6MM
Price
N/A
247
HEX NUT M6-1
Price
N/A
301
DOOR RIGHT
Price
$146.75
302
HEX BOLT M6-1 X 20
Price
N/A
303
FLAT WASHER 6MM
Price
N/A
304
HINGE LOWER
Price
$20.85
305
BOTTOM COVER
Price
$206.25
306
FLAT HD SCR M6-1 X 12
Price
N/A
307
MAGNET
Price
$16.95
308
HINGE UPPER
Price
$5.15
309
CARRIAGE BOLT M6-1 X 16
Price
N/A
310
HEX NUT M6-1
Price
N/A
311
HEX NUT M12-1.75
Price
N/A
312
FLAT WASHER 12MM
Price
N/A
313
BOTTOM PLATE
Price
$293.20
314
CONNECT PLATE
Price
$1.60
315
COVER RIGHT UPPER
Price
$101.75
316
STAR KNOB M10-1.5 X 25
Price
$3.65
317
COVER UPPER LEFT
Price
$90.30
318
STAR KNOB M8-1.25 X 20
Price
$23.60
319
HEX NUT M8-1.25
Price
N/A
320
SAFETY PLATE
Price
$67.65
321
SAFETY PLATE SUPPORT
Price
$16.05
322
DOOR LEFT
Price
$146.75
323
DOOR LOWER GUARD
Price
$3.65
324
LATCH SET
Price
$54.10
325
LATCH
Price
$32.65
327
COVER RIGHT UPPER
Price
$185.70
328
CONNECTOR PLATE
Price
$6.40
329
BOTTOM PLATE
Price
$310.10
330
DUST GUIDE PLATE
Price
$133.80
332
CARRIAGE BOLT M6-1 X 16
Price
N/A
401
SUPPORT ROLLER
Price
$72.45
401A
SUPPORT ROLLER W/ECCENTRIC SHAFT ASSY
Price
$117.80
402
BALL BEARING 6200ZZ
Price
N/A
403
INT RETAINING RING 30MM
Price
N/A
404
ECCENTRIC SHAFT
Price
$36.25
405
FLAT HD SCR M6-1 X 25
Price
N/A
406
SAW GUARD 1
Price
$90.60
407
SPACER
Price
$18.15
408
SAW GUARD C
Price
$86.95
409
SPACER LOWER
Price
$18.15
410
BLADE GUIDE RIGHT SUPPORT
Price
$61.60
411
HEX BOLT M8-1.25 X 25
Price
N/A
412
BLADE GUIDE RIGHT BRACKET
Price
$90.60
413
FLAT WASHER 8MM
Price
N/A
414
LOCK WASHER 8MM
Price
N/A
415
HEX NUT M10-1.5
Price
N/A
416
HEX BOLT M10-1.5 X 25
Price
N/A
417
CARRIAGE BOLT M10-1.5 X 25
Price
N/A
418
BLADE GUIDE RIGHT ADJ
Price
$65.25
419
FLAT WASHER 12MM
Price
N/A
420
HEX NUT M12-1.75
Price
N/A
421
BLADE GUARD LEFT SUPPORT
Price
$72.45
422
BLADE GUIDE LEFT BRACKET
Price
$101.75
423
FLAT WASHER 10MM
Price
N/A
424
LOCK WASHER 10MM
Price
N/A
425
CARRIAGE BOLT M12-1.75 X 40
Price
N/A
426
BLADE GUIDE LEFT ADJUSTER
Price
$65.25
427
CAP SCREW M12-1.75 X 40
Price
N/A
428
HEX NUT M8-1.25
Price
N/A
429
LOCK WASHER 8MM
Price
N/A
430
HEX BOLT M8-1.25 X 80
Price
N/A
431
SCRAPER BRACKET A
Price
N/A
432
HEX NUT M8-1.25
Price
N/A
433
SCRAPE
Price
N/A
434
P0503434
Now: PW13
FLAT WASHER 3/4
Price
N/A
435
HEX NUT M8-1.25
Price
N/A
436
HEX NUT M12-1.75
Price
N/A
437
P0503437
Now: PW13
FLAT WASHER 3/4
Price
N/A
438
HEX NUT M12-1.75
Price
N/A
439
FLAT WASHER 12MM
Price
N/A
440
FIX SCRAPE
Price
N/A
441
HEX NUT M8-1.25
Price
N/A
442
SCRAPER BRACKET A
Price
N/A
443
SCRAPE
Price
N/A
444
HEX BOLT M8-1.25 X 80
Price
N/A
445
SCRAPER BRACKET B
Price
N/A
446
CAP SCREW M12-1.75 X 40
Price
N/A
447
LOCK WASHER 12MM
Price
N/A
448
HEX BOLT M12-1.75 X 50
Price
N/A
449
P0503449
Now: PW13
FLAT WASHER 3/4
Price
N/A
450
HEX NUT M12-1.75
Price
N/A
451
HEX BOLT M12-1.75 X 50
Price
N/A
452
STUD M12-1.75 X 110
Price
N/A
453
FLAT WASHER 12MM
Price
N/A
454
P0503454
Now: PW13
FLAT WASHER 3/4
Price
N/A
455
P0503455
Now: PW13
FLAT WASHER 3/4
Price
N/A
456
HEX NUT M10-1.5
Price
N/A
457
FLAT WASHER 12MM
Price
N/A
458
HEX NUT M12-1.75
Price
N/A
459
INT RETAINING RING 90MM
Price
N/A
501
WHEEL ADJUSTMENT LOWER PLATE
Price
$124.40
502
FLAT WASHER 20MM
Price
N/A
503
HEX BOLT M12-1.75 X 30
Price
N/A
504
WHEEL ADJUSTMENT PIECE
Price
$47.75
505
CAP SCREW M10-1.5 X 30
Price
N/A
506
WHEEL ADJUSTMENT UPPER PLATE
Price
$124.40
507
HEX NUT M12-1.75
Price
N/A
508
HEX BOLT M12-1.75 X 50
Price
N/A
509
WHEEL SHAFT RIGHT
Price
$293.20
510
INT RETAINING RING 90MM
Price
N/A
511
SEAL 70 X 90 X 8
Price
$7.25
512
TAPERED ROLLER BEARING 30211
Price
$103.50
513
DRIVE PULLEY
Price
$434.70
514
SAW BLADE
Price
$108.70
515
DRIVE WHEEL
Price
$1,385.35
516
LOCK WASHER 12MM
Price
N/A
517
CAP SCREW M12-1.75 X 40
Price
N/A
518
WHEEL SHAFT NUT 70 X 55 X 22
Price
$25.10
519
LOCK NUT M55-2
Price
$14.50
520
GREASE FITTING
Price
$1.60
521
STUD-FT M12-1.75 X 200
Price
$20.55
522
SCRAPE
Price
$10.90
523
SCRAPER BRACKET A
Price
$36.25
524
SCRAPER BRACKET B
Price
$36.25
525
HEX NUT M10-1.5
Price
N/A
526
FIX SCRAPE
Price
$12.75
527
HEX NUT M8-1.25
Price
N/A
528
HEX BOLT M8-1.25 X 80
Price
N/A
529
HEX BOLT M10-1.5 X 80
Price
N/A
530
LINER GUIDE
Price
$271.15
531
LINER WAY
Price
$623.40
532
LOCK WASHER 8MM
Price
N/A
533
CAP SCREW M8-1.25 X 25
Price
N/A
534
BLADE TENSION PLATE
Price
$78.85
535
CAP SCREW M8-1.25 X 20
Price
N/A
536
WHEEL SHAFT LEFT
Price
$260.25
537
SAW WHEEL LEFT
Price
$1,021.55
538
WHEEL BEARING CAP
Price
$192.00
539
HEX BOLT M10-1.5 X 60
Price
N/A
540
HEX BOLT M10-1.5 X 25
Price
N/A
541
HEX BOLT M10-1.5 X 60
Price
N/A
542
HEX BOLT M12-1.75 X 30
Price
N/A
543
MOTOR BRACKET SUPPORT B
Price
N/A
544
ROLLER BRACKET
Price
N/A
545
CAP SCREW M10-1.5 X 25
Price
N/A
546
ROLLER BRACKET
Price
N/A
547
ROLLER BRACKET
Price
N/A
548
PILLOW BLOCK BEARING UCP205
Price
N/A
549
LOCK COLLAR A
Price
N/A
550
PRESSURE ROLLER WHEEL
Price
N/A
551
ROLLER ARM SHAFT REAR
Price
N/A
552
SET SCREW M8-1.25 X 10
Price
N/A
553
LOCK COLLAR B
Price
N/A
554
ROLLER ARM SHAFT REAR
Price
N/A
555
CONVEYOR
Price
N/A
556
ROLLER BRACKET
Price
N/A
557
HEX BOLT M10-1.5 X 25
Price
N/A
558
FLAT WASHER 10MM
Price
N/A
559
PILLOW BLOCK BEARING UCP205
Price
N/A
560
ROLLER BRACKET
Price
N/A
561
HEX BOLT M12-1.75 X 25
Price
N/A
562
LOCK WASHER 10MM
Price
N/A
563
FLAT WASHER 12MM
Price
N/A
564
FLAT WASHER 8MM
Price
N/A
565
CARRIAGE BOLT M12-1.75 X 40
Price
N/A
566
CONVEYOR PLATEN
Price
N/A
567
FLAT WASHER 12MM
Price
N/A
568
HEX NUT M10-1.5
Price
N/A
569
HEX NUT M10-1.5
Price
N/A

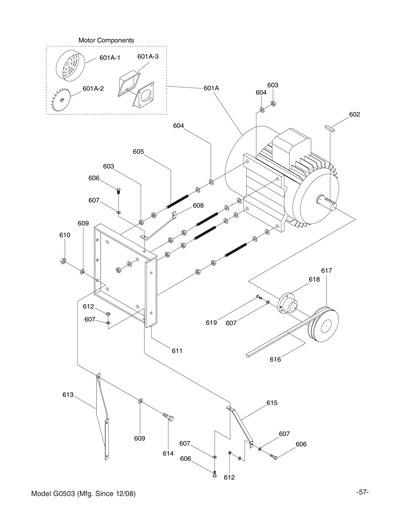

601
MOTOR 20HP 220V/440V 3-PH V1
Price
$3,668.40
601A
MOTOR SIEMENS 20HP V2.11.07
Price
$1,400.70
601A-1
FAN COVER V2.11.07
Price
$80.05
601A-2
FAN V2.11.07
Price
$93.95
601A-3
MOTOR WIRING BOX V2.11.07
Price
$31.15
602
KEY 9 X 14 X 80
Price
$6.40
603
HEX NUT M12-1.75
Price
N/A
604
FLAT WASHER 12MM
Price
N/A
605
STUD M12-1.75 X 110
Price
$1.60
606
HEX BOLT M8-1.25 X 20
Price
N/A
607
FLAT WASHER 8MM
Price
N/A
608
MOTOR BRACKET SUPPORT A
Price
$31.15
609
LOCK WASHER 10MM
Price
N/A
610
HEX NUT M10-1.5
Price
N/A
611
MOTOR BASE
Price
$145.25
612
HEX NUT M8-1.25
Price
N/A
613
MOTOR BASE SUPPORT
Price
$43.50
614
HEX BOLT M10-1.5 X 25
Price
N/A
615
MOTOR BRACKET SUPPORT B
Price
$31.15
616
V-BELT B51
Price
N/A
617
MOTOR PULLEY
Price
$217.35
618
LOCK SLEEVE
Price
$162.75
619
HEX BOLT M8-1.25 X 25
Price
N/A
700A
COMPLETE CONVEYOR ASSY BOX 2
Price
$4,165.90
701
CONVEYOR LOWER PLATE
Price
$312.50
702
HEX NUT M10-1.5
Price
N/A
703
FLAT WASHER 10MM
Price
N/A
704
CARRIAGE BOLT M10-1.5 X 30
Price
N/A
705
CONVEYOR PLATEN
Price
$499.95
706
CAP SCREW M10-1.5 X 25
Price
N/A
707
LOCK WASHER 10MM
Price
N/A
708
ADJUST SCREW M12-1.75 X 90
Price
$22.70
709
HEX BOLT M12-1.75 X 25
Price
N/A
710
LOCK WASHER 12MM
Price
N/A
711
FLAT WASHER 12MM
Price
N/A
712
PILLOW BLOCK BEARING UCP205
Price
N/A
713
ROLLER BRACKET
Price
$74.65
714
ROLLER FRONT
Price
$293.20
715
ROLLER SIDE PLATE
Price
$325.80
716
ROLLER SEAT
Price
$81.25
717
HEX NUT M12-1.75
Price
N/A
718
HEX BOLT M10-1.5 X 25
Price
N/A
719
ROLLER
Price
$34.15
720
KEY 6 X 5 X 32
Price
$12.75
721
CONVEYOR HYDRAULIC MOTOR V1
Price
N/A
722
HYDRAULIC DRIVE FLANGE 6 X 5 X 32
Price
$112.30
723
BALL BEARING 6008ZZ
Price
N/A
724
ROLLER BRACKET
Price
$96.35
725
CONVEYOR
Price
$724.50
726
ROLLER BRACKET
Price
$90.30
727
REAR ROLLER
Price
$724.50
801
PRESSURE ROLLER WHEEL
Price
$126.80
802
FLAT WASHER 18MM
Price
N/A
803
ROLLER SHAFT
Price
$23.60
804
CAP SCREW M6-1 X 8
Price
N/A
805
ROLLER FRONT BRACKET
Price
$169.40
806
HEX BOLT M10-1.5 X 25
Price
N/A
807
HEX NUT M10-1.5
Price
N/A
808
ROLLER FRONT ADJUSTER
Price
$108.70
809
ROLLER SHAFT FRONT
Price
$135.25
810
HEX NUT M12-1.75
Price
N/A
811
LOCK WASHER 12MM
Price
N/A
812
FLAT WASHER 12MM
Price
N/A
813
BALL BEARING 6205ZZ
Price
N/A
814
BEARING BRACKET
Price
$217.10
815
FLAT WASHER 10MM
Price
N/A
816
LOCK WASHER 10MM
Price
N/A
817
ROLLER SUPPORT FRONT
Price
$195.40
818
CAP SCREW M8-1.25 X 20
Price
N/A
819
LOCK WASHER 8MM
Price
N/A
820
FLAT WASHER 8MM
Price
N/A
821
SPACER
Price
$10.90
822
SHOCK ABSORBER
Price
$142.25
823
CAP SCREW M12-1.75 X 120
Price
N/A
824
ROLLER ARM BRACKET REAR
Price
$217.10
825
ROLLER ARM SHAFT REAR
Price
$36.25
826
SET SCREW M8-1.25 X 10
Price
N/A
827
LOCK COLLAR A
Price
$10.90
828
ROLLER BRACKET REAR
Price
$99.65
829
LOCK COLLAR B
Price
$18.15
830
FIX REAR PRESSURE ROLLER BRACKET
Price
$61.05
831
ROLLER SHAFT REAR
Price
$7.00
832
COUNTERWEIGHT
Price
$101.45
833
COMPRESSION SPRING
Price
$13.95
834
UPPER BRACKET
Price
$72.45
835
NUT UPPER
Price
$47.10
836
ADJUST NUT LOWER
Price
$39.60
837
SHOCK SCREW
Price
$47.10
901
RETURN CONVEYOR FRAME
Price
$1,305.95
902
ROUND SHAFT
Price
$1.60
903
ROLLER
Price
$73.70
904
HEX BOLT M12-1.75 X 30
Price
N/A
905
FLAT WASHER 12MM
Price
N/A
906
CONVEYOR SUPPORT BRACKET
Price
$119.55
907
CONVEYOR SUPPORT BRACKET
Price
$119.55
908
HEX NUT M12-1.75
Price
N/A
909
*DISCD*CONVERSION KIT 440V 23/32A V1.12.
Item is no longer available
Price
N/A
909-1
*DISCD*CONVERSION KIT 440V V2.02.07
Item is no longer available
Price
N/A
909V3
440V CONVERSION KIT FOR G0503 V3.08.14
Price
$253.60
910
LOCK WASHER 12MM
Price
N/A
A01
NO FUSE SWITCH NFB 3P 75A
Price
$253.35
A01-1
POWER ON DIAL SWITCH 30184
Price
$390.70
A01-2
POWER ON DIAL SWITCH EZC100F
Price
$321.20
A02
CONTACTOR TELE LC1D40A 220V V1
Price
$225.55
A02A
MOTOR MAGNETIC STARTER V2.05.04
Price
$485.45
A02V3
CONTACTOR SCHN LC1D50A 220V V3.08.14
Price
$525.30
A03
CONTACTOR TELE LC1-D096 220V V1
Price
$146.75
A03V2
CONTACTOR SCHN LC1D09 220V V2.08.14
Price
$163.05
A04
TRANSFORMER 200VA 220/440V-220V
Price
$181.15
A05
DOOR/MICRO SWITCH
Price
$45.35
A06
FUSE 5A
Price
$1.60
A07
BUSS BAR
Price
$16.95
A08
MOTOR START BUTTON
Price
$51.75
A09
PUMP START BUTTON
Price
$34.15
A10
POWER ON BUTTON
Price
$72.45
A11
MOTOR STOP BUTTON
Price
$51.75
A12
PUMP STOP BUTTON
Price
$30.55
A13
E-STOP BUTTON SKB2-BE102
Price
$81.25
A14
*DISCD*OVERRE RH 35/42 33-50AMP V1.01.04
Price
$203.30
A14A
RELAY 440V LR3D3355 V2.07.04
Price
$91.80
A14AV2
OL RELAY SCHN LR3D340 30-40A V2.08.14
Price
$398.50
A14V2
*DISCD*OL RELAY SCHN LR3D365 48-65A
Price
$379.50
A15
OL RELAY TELE LR3D126 5.5-8A V1
Price
$81.25
A15A
OL RELAY TELE LR3D086 2.5-4A V1
Price
$68.85
A15AV2
OL RELAY SCHN LR3D08 2.5-4A V2.08.14
Price
$90.60
A15V2
OL RELAY SCHN LR3D12 5.5-8A V2.08.14
Price
$90.60
A16
TERMINAL BLOCK
Price
$312.50
A17
*DISCD*CONVERSION KIT 440V 23/32A V1.12.
Price
N/A
A17V2
440V CONVERSION KIT V2.08.14
Price
$489.05
B02
*DISCD*DRAIN POINT
Price
$86.25
B09
*DISCD*MOTOR
Price
$207.00
B16
*DISCD*HYDRAULIC MOTOR
Price
$529.00
B19
*DISCD*HYDRAULIC HOSE 3/8
Price
$47.75
B47
HYDRAULIC TANK V1
Price
$804.85
B47V2
HYDRAULIC TANK V2.11.06
Price
$289.80
B48
OIL DIVERTER V1
Price
$105.10
B48V2
T-CONNECTOR 3/8 V2.11.06
Price
$19.95
B49
HYDRAULIC PRESSURE GAUGE
Price
$182.35
B50
HYDRAULIC HOSE 3/8 X 67 V1
Price
$65.85
B50V2
HYDRAULIC HOSE 3/8 X 102 V2.05.16
Price
$72.45
B51
HYDRAULIC HOSE 3/8 X 91 V1
Price
$87.30
B51V2
HYDRAULIC HOSE 3/8 X 91, 45DEG V2.05.16
Price
$54.35
B52
MALE ELBOW 3/8 X 3/8 90DEG
Price
$5.50
B53
VARIABLE SPEED ADJUSTOR
Price
$108.70
B54
HYDRAULIC VALVE 3/8" V1
Price
$126.80
B54V2
HYDRAULIC 3-WAY BALL VALVE 3/8" V2.08.13
Price
$307.95
B55
MALE ELBOW 3/8 X 3/8 90DEG
Price
$7.60
B56
CONVEYOR HYDRAULIC MOTOR V1
Price
$707.50
B56V2
CONVEYOR HYDRAULIC MOTOR VMP-125 V2
Price
$917.70
B57
MALE ELBOW 1/2 X 3/8 45DEG V1
Price
$6.95
B57V2
MALE ELBOW 1/2T X 3/8H X 90DEG V2.05.16
Price
$10.90
B58
MALE ELBOW 1/2 X 3/8 45DEG V1
Price
N/A
B58V2
MALE ELBOW 1/2T X 3/8H X 90DEG V2.05.16
Price
$10.90
B59
HYDRAULIC HOSE 3/8 X 60 V1
Price
$65.85
B59V2
HYDRAULIC HOSE 3/8 X 30 V2.11.06
Price
$25.40
B60
STOP VALVE 3/8
Price
$34.45
B61
HYDRAULIC HOSE 1/2 X 16 V1
Price
$32.65
B61V2
HYDRAULIC HOSE 1/2 X 12 V2.11.06
Price
$32.65
B62
HYDRAULIC PUMP V1
Price
$652.05
B62V2
HYDRAULIC PUMP VP-12/70 V2.11.06
Price
$652.05
B63
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
B64
HYDRAULIC HOSE 3/8 X 20 V1
Price
$33.25
B64V2
HYDRAULIC HOSE 3/8 X 13 V2.11.06
Price
$21.75
B65
MOTOR 2HP 220V/440V 3-PH V1
Price
$864.60
B65V2
MOTOR 2HP 220V/440V 3-PH V2.11.06
Price
$864.60
B66
HOSE 3/8 BRASS V1
Price
$80.05
B66V2
HOSE 1/2 X 10 BRASS V2.11.06
Price
$23.60
B67
OIL COOLER V1
Price
$362.25
B67V2
OIL COOLER V2.11.06
Price
$579.60
B68
OIL FILTER
Price
$235.50
B68-1
FILTER PRESSURE GAUGE
Price
$86.25
B68-2
OIL FILTER
Price
N/A
B68-3
OIL FILTER
Price
N/A
B68-4
OIL FILTER
Price
N/A
B68A
OIL FILTER KIT
Price
$333.60
B69
OIL LEVEL GAUGE
Price
$18.15
B70
PLUG
Price
$3.05
B71
FILTER BREATHER CAP ASSEMBLY
Price
$23.60
B71-1
FILLER CAP GASKET
Price
$10.90
B71-2
FILLER CAP THREAD PIECE
Price
$5.50
B71-3
THREAD PIECE GASKET
Price
$5.50
B71-4
FILTER BREATHER CAP ASSEMBLY
Price
N/A
B72
HOSE BRASS
Price
$78.50
B73
TANK SCREEN
Price
$18.15
B74
FILTER & O-RING KIT
Price
$198.05
B75V2
OIL COOLER FAN V2.11.06
Price
$1,630.15
B76
HYDRAULIC TANK ACCESS PLATE
Price
$21.20
B76-1
ACCESS PLATE GASKET
Price
$5.50
B77
BRACKET 3/8T X 3/8T
Price
$5.50
B78
BRACKET 3/8T X 3/8H X 90DEG
Price
$7.25
B79
MALE ELBOW 1/2T X 1/2H X 90DEG
Price
$10.90
B80
MALE ELBOW 1/2T X 3/8H X 90DEG
Price
$10.90
B81
CONNECTOR 3/8T X 3/8HF-A
Price
$5.50
B82
T-CONNECTOR 3/8H X 3/8HFA
Price
$23.60
B83
CONNECTOR 3/8T
Price
$5.50
B84
HYDRAULIC HOSE 3/8 X 91
Price
$72.45
B85
CONNECTOR 1/2T X 3/4H
Price
$9.10
B86
CONNECTOR 3/4HF X 1/2TF X 90 DEG
Price
$32.65
MANUAL
MANUAL FOR G0503 08/04
Price
$14.65
