Parts for G0920 - 22" Variable-Speed Open-Ended Drum Sander

Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920
Part Diagram for G0920

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

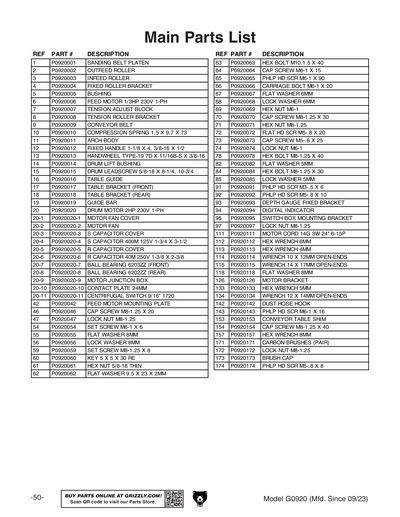

Ref #
Part #
Description
1
SANDING BELT PLATEN
Price
$339.35
2
OUTFEED ROLLER
Price
$234.60
3
INFEED ROLLER
Price
$219.80
4
FIXED ROLLER BRACKET
Price
$14.85
5
BUSHING
Price
$10.30
6
FEED MOTOR 1/3HP 230V 1-PH
Price
$638.80
7
TENSION ADJUST BLOCK
Price
$16.35
8
TENSION ROLLER BRACKET
Price
$26.90
9
CONVEYOR BELT
Price
$308.90
10
COMPRESSION SPRING 1.5 X 9.7 X 73
Price
$6.05
11
ARCH BODY
Price
$495.40
12
FIXED HANDLE 1-1/8 X 4, 3/8-16 X 1/2
Price
$18.15
13
HANDWHEEL TYPE-19 7D X 11/16B-S X 3/6-16
Price
$69.80
14
DRUM LIFT BUSHING
Price
$16.35
15
DRUM LEADSCREW 5/8-18 X 8-1/4, 10-3/4
Price
$74.90
16
TABLE GUIDE
Price
$157.95
17
TABLE BRACKET (FRONT)
Price
$205.95
18
TABLE BRACKET (REAR)
Price
$193.85
19
GUIDE BAR
Price
$124.70
20
DRUM MOTOR 2HP 230V 1-PH
Price
$1,087.40
20-1
MOTOR FAN COVER
Price
$102.65
20-10
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
$116.25
20-11
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
N/A
20-2
MOTOR FAN
Price
$64.00
20-3
S CAPACITOR COVER
Price
$61.60
20-4
S CAPACITOR 400M 125V 1-3/4 X 3-1/2
Price
$148.55
20-5
R CAPACITOR COVER
Price
$51.70
20-6
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
20-7
BALL BEARING 6203ZZ
Price
N/A
20-8
BALL BEARING 6202ZZ
Price
N/A
20-9
MOTOR JUNCTION BOX
Price
$53.80
42
FEED MOTOR MOUNTING PLATE
Price
$110.55
46
CAP SCREW M8-1.25 X 20
Price
N/A
47
LOCK NUT M8-1.25
Price
N/A
54
SET SCREW M6-1 X 6
Price
N/A
55
FLAT WASHER 8MM
Price
N/A
56
LOCK WASHER 8MM
Price
N/A
59
SET SCREW M8-1.25 X 8
Price
N/A
60
KEY 5 X 5 X 30 RE
Price
$8.20
61
HEX NUT 5/8-18 THIN
Price
N/A
62
FLAT WASHER 10MM
Price
N/A
63
HEX BOLT M10-1.5 X 40
Price
N/A
64
CAP SCREW M6-1 X 15
Price
N/A
65
PHLP HD SCR M6-1 X 90
Price
N/A
66
CARRIAGE BOLT M6-1 X 20
Price
N/A
67
FLAT WASHER 6MM
Price
N/A
68
LOCK WASHER 6MM
Price
N/A
69
HEX NUT M6-1
Price
N/A
70
CAP SCREW M8-1.25 X 30
Price
N/A
71
HEX NUT M8-1.25
Price
N/A
72
FLAT HD SCR M5-.8 X 20
Price
N/A
73
CAP SCREW M5-.8 X 25
Price
N/A
74
LOCK NUT M6-1
Price
N/A
78
HEX BOLT M8-1.25 X 40
Price
N/A
82
FLAT WASHER 5MM
Price
N/A
84
HEX BOLT M8-1.25 X 30
Price
N/A
85
LOCK WASHER 5MM
Price
N/A
91
PHLP HD SCR M3-.5 X 6
Price
N/A
92
PHLP HD SCR M5-.8 X 10
Price
N/A
93
DEPTH GAUGE FIXED BRACKET
Price
$17.55
94
DIGITAL INDICATOR
Price
$345.70
95
SWITCH BOX MOUNTING BRACKET
Price
$64.95
97
LOCK NUT M8-1.25
Price
N/A
111
MOTOR CORD 14G 3W 24" 6-15P
Price
$123.20
112
HEX WRENCH 6MM
Price
N/A
113
HEX WRENCH 4MM
Price
N/A
114
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
115
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
118
FLAT WASHER 8MM
Price
N/A
126
MOTOR BRACKET
Price
$292.25
133
HEX WRENCH 5MM
Price
N/A
134
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
142
DUST HOSE HOOK
Price
$49.55
143
PHLP HD SCR M6-1 X 16
Price
N/A
153
CONVEYOR TABLE SHIM
Price
$24.50
154
CAP SCREW M8-1.25 X 40
Price
N/A
157
HEX WRENCH 8MM
Price
N/A
171
CARBON BRUSHES (PAIR)
Price
$33.05
172
LOCK NUT M8-1.25
Price
N/A
173
BRUSH CAP
Price
$36.00
174
PHLP HD SCR M5-.8 X 8
Price
N/A
205
BUSHING
Price
N/A
221
DRUM CASE
Price
$451.95
222
DRUM ROLLER ASSEMBLY
Price
$492.10
223
PULL CLAMP BRACKET
Price
$44.10
223A
PULL CLAMP ASSY
Price
$75.80
224
DRUM TORSION SPRING
Price
$12.40
225
FIXED CLAMP BRACKET
Price
$31.75
226
PULL CLAMP
Price
$15.15
227
PULL CLAMP TORSION SPRING
Price
$1.85
228
FIXED CLAMP
Price
$24.15
229
FIXED CLAMP TORSION SPRING
Price
$4.85
230
BEARING CAP
Price
$24.15
231
PRESSURE ROLLER BRACKET
Price
$19.10
232
ROLLER MOUNT (RIGHT)
Price
$18.75
233
ROLLER MOUNT (LEFT)
Price
$18.75
234
COMPRESSION SPRING 0.9 X 6.3 X 25 V1
Price
$4.60
234V2
COMPRESSION SPRING 1.4 X 8 X 40.25 V2.09
Price
$5.50
235
PRESSURE ROLLER
Price
$135.90
236
DRUM DOOR HINGE
Price
$8.20
237
DRUM SHAFT JOINT COVER
Price
$27.20
238
JAW CLUTCH COUPLER
Price
$34.80
239
DRUM DOOR HANDLE
Price
$17.55
240
DRUM DOOR
Price
$74.65
241
JAW CLUTCH BLOCK
Price
$25.10
243
3" x 22' A/O Sanding Roll 100 Grit
Price
N/A
244
***USE PR19M***
Price
$2.90
245
KEX 5 X 5 X 20 RE
Price
$6.40
246
CAP SCREW M8-1.25 X 20
Price
N/A
247
LOCK NUT M8-1.25
Price
N/A
248
PHLP HD SCR M5-.8 X 20
Price
N/A
249
HEX NUT M5-.8
Price
N/A
251
FLAT HD SCR 10-24 X 3/8
Price
N/A
252
HEX NUT M4-.7
Price
N/A
253
FLAT HD SCR M6-1 X 25
Price
N/A
255
FLAT WASHER 8MM
Price
N/A
257
PHLP HD SCR M4-.7 X 35
Price
N/A
257V2
PHLP HD SCR M5-.8 X 50
Price
N/A
258
LOCK NUT M4-.7
Price
N/A
258V2
LOCK NUT M5-.8
Price
N/A
267
FLAT WASHER 6MM
Price
N/A
268
LOCK WASHER 6MM
Price
N/A
271
HEX NUT M8-1.25
Price
N/A
274
LOCK NUT M6-1
Price
N/A
278
DEPTH GAUGE ARCH BRACKET
Price
$27.80
279
BALL BEARING 6205-2RS
Price
N/A
281
PHLP HD SCR M5-.8 X 8
Price
N/A
282
FLAT WASHER 5MM
Price
N/A
283
KNOB BOLT M6-1 X 10
Price
$6.05
285
LOCK WASHER 5MM
Price
N/A
291
PHLP HD SCR M3-.5 X 6
Price
N/A
316
CARRIAGE BOLT M8-1.25 X 30
Price
N/A
337
DRUM LIFT ADJUSTMENT PLATE
Price
$115.05
345
FLAT WASHER 4.3 X 10 X 1MM
Price
$3.65
346
SET SCREW 1/4-20 X 5/16
Price
N/A
347
SET SCREW 10-24 X 5/8
Price
N/A
348
CAP SCREW M6-1 X 50
Price
$3.65
349
COMPRESSION SPRING 0.7 X 8 X 35
Price
$7.00
358
SET SCREW M8-1.25 X 45
Price
N/A
359
FLAT WASHER 8MM
Price
N/A
360
KNOB M8-1.25, 7-LOBE, D60
Price
$17.55
450
P0920450
Now: PN02
HEX NUT 5/16-18
Price
N/A
455
FLAT WASHER 8MM
Price
N/A
456
LOCK WASHER 8MM
Price
N/A
459
P0920459
Now: PW07
FLAT WASHER 5/16
Price
N/A
461
RIGHT SIDE PANEL
Price
$454.65
462
LEFT SIDE PANEL
Price
$380.70
463
FRONT PANEL
Price
$339.35
464
REAR PANEL
Price
$339.35
465
UPPER PANEL
Price
$132.25
466
PARTITION PANEL
Price
$51.05
467
CABINET DOOR
Price
$124.70
468
BOTTOM PANEL
Price
$217.35
469
RUBBER FOOT
Price
$7.00
470
P0920470
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
471
HEX NUT M8-1.25
Price
N/A
475
HEX BOLT M8-1.25 X 25
Price
N/A
476
CABINET DOOR LATCH HANDLE
Price
$44.10
481
PHLP HD SCR M5-.8 X 8
Price
N/A
482
FLAT WASHER 5MM
Price
N/A
485
LOCK WASHER 5MM
Price
N/A
522
TABLE BLOCK (RIGHT)
Price
$189.35
523
TABLE BLOCK (LEFT)
Price
$189.35
524
TABLE FOLDING BRACKET (RIGHT)
Price
$100.55
525
TABLE FOLDING BRACKET (LEFT)
Price
$100.55
527
COMPRESSION SPRING 1 X 10 X 21
Price
$3.65
528
FLAT HD SCR M8-1.25 X 25
Price
N/A
529
SHOULDER SCREW M10-1.5 X 30, 10 X 35
Price
$9.40
530
LOCK NUT M10-1.5
Price
N/A
531
CAP SCREW M8-1.25 X 16
Price
N/A
547
LOCK NUT M8-1.25
Price
N/A
555
FLAT WASHER 8MM
Price
N/A
556
SET SCREW M8-1.25 X 8
Price
N/A
562
FLAT WASHER 10MM
Price
N/A
563
LOCK WASHER 8MM
Price
N/A
571
HEX NUT M8-1.25
Price
N/A
587
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
588
EXTENSION TABLE
Price
$172.70
589
TABLE MOUNTING BRACKET
Price
$140.10
590
SHOULDER SCREW M8-1.25 X 33, 8 X 22
Price
$10.30
600
STRAIN RELIEF TYPE-1 7/8"
Price
$7.00
601
ELECTRICAL OUTLET 15A 250V
Price
$89.70
602
STRAIN RELIEF TYPE-1 5/8"
Price
$3.65
603
RESISTANCE PLATE
Price
$4.30
604
CONVEYOR SPEED DIAL KNOB
Price
$18.15
605
INSULATION BOARD
Price
$12.10
606
POTENTIOMETER/CIRCUIT BOARD AMP-326B
Price
$138.60
607
SWITCH BOX COVER
Price
$18.45
608
FLAT HD SCR M5-.8 X 10
Price
N/A
609
PHLP HD SCR M5-.8 X 20
Price
N/A
610
POWER CORD 14G 3W 60" 6-15P
Price
$106.60
632
CIRCUIT BREAKER KUOYOH 88 SERIES 9A
Price
$26.00
649
HEX NUT M4-.7
Price
N/A
650
EXT TOOTH WASHER 5MM
Price
N/A
651
CIRCUIT BOARD CORD 14G 1W 5"
Price
$10.30
681
PHLP HD SCR M5-.8 X 8
Price
N/A
682
FLAT WASHER 5MM
Price
N/A
683
FLAT WASHER 4MM
Price
N/A
684
PHLP HD SCR M4-.7 X 20
Price
N/A
685
LOCK WASHER 5MM
Price
N/A
686
LOCK WASHER 4MM
Price
N/A
698
SWITCH BOX
Price
$169.05
699
ON/OFF SWITCH WKJD-17B
Price
$160.60
701
READ MANUAL/PPE LABEL
Price
$9.20
702
KEEP DOOR CLOSED LABEL
Price
$9.20
703
KICKBACK/PINCH HAZARD LABEL
Price
$10.25
704
ELECTRICITY 0.7W X 0.6H
Price
N/A
705
SHOCK/ENTANGLEMENT HAZARD LABEL
Price
$9.20
706
FPM LABEL
Price
$10.25
707
MACHINE ID LABEL
Price
$16.40
708
Nameplate - Small
Price
N/A
709
LIGHT BEIGE REF G4003G
Price
N/A
710
MODEL NUMBER LABEL
Price
$21.50
711
N/S GRIZZLY GREEN G1023S
Price
N/A
712
MAX SANDING WIDTH LABEL
Price
$4.50
MAN
MANUAL G0920 MFD-10.20+ V1.08.23
Price
$21.95
